Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3476 |

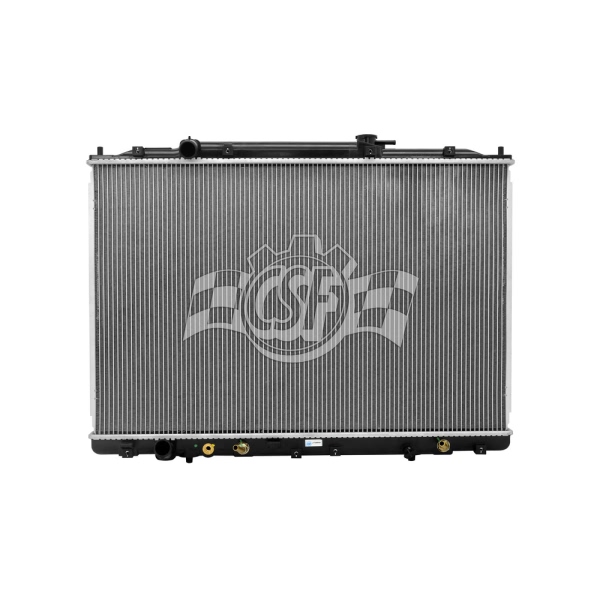

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 25 7/8 |
| Core Length | 19 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 30 3/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353034767 |
| OE Part Number | 19010-RYE-A52, CU2938, 2938, 8012938 |
| Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 31 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2013 Acura MDX | All Trims | 6 Cyl 3.7L |
| 2010-2012 Acura ZDX | All Trims | 6 Cyl 3.7L |
