Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3479 |

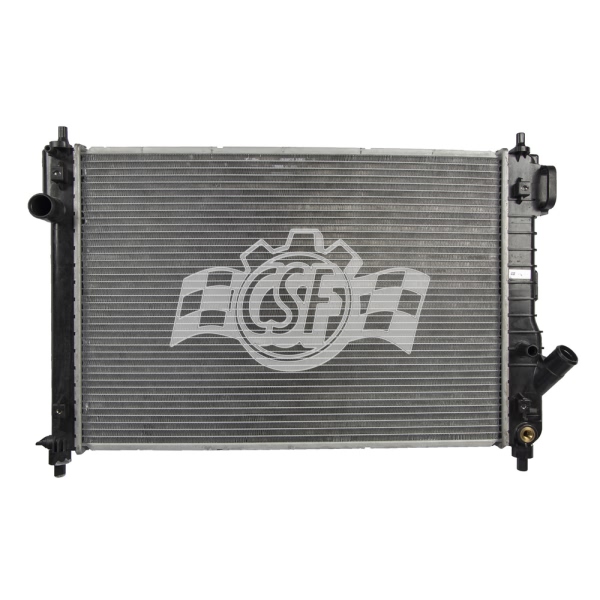

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 7 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 23 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 7/8 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| UPC | 710353034798 |
| OE Part Number | 13097, 8013097, 96992883, 96992882, CU13097 |
| Oil Cooler (in) | 9 7/8 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 7/8 |
| Outlet Width | 1 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2013 Chevrolet Aveo | All Trims | 4 Cyl 1.6L |
| 2009-2011 Chevrolet Aveo5 | All Trims | 4 Cyl 1.6L |
| 2007-2010 Pontiac G3 | All Trims | 4 Cyl 1.6L |
| 2009 Pontiac G3 Wave | All Trims | 4 Cyl 1.6L |
