Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3488 |

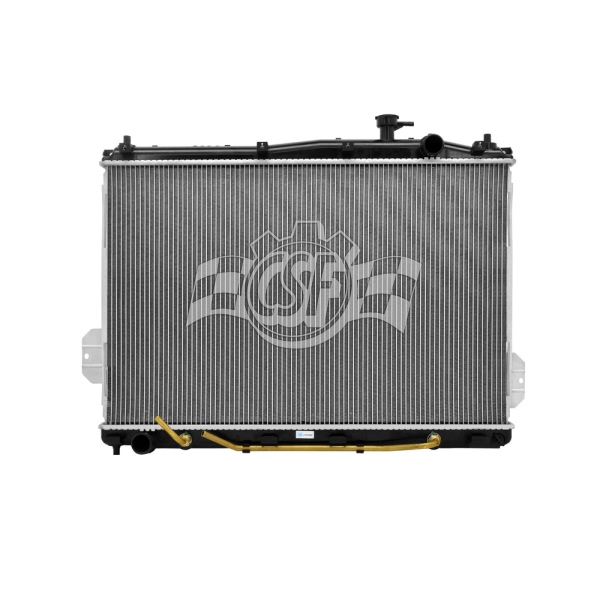

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 4 14/16 |
| Box Length (in) | 33 3/8 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 11/16 |
| Core Length | 18 1/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 1/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 28 3/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353034880 |
| OE Part Number | 25310-3J100, 8012959, 2959, CU2959 |
| Oil Cooler (in) | 17 5/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 28 3/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Air Dam on core not supplied;Original Air Dam must be removed and used. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2012 Hyundai Veracruz | All Trims | 6 Cyl 3.8L |
