Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3492 |

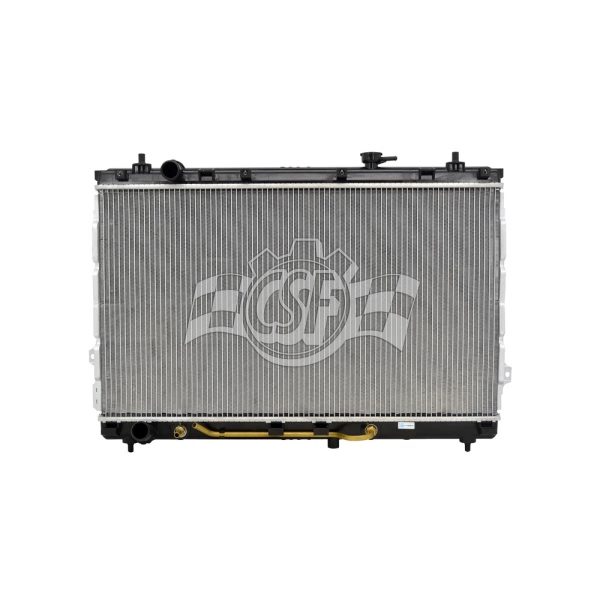

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 34 9/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 24 3/4 |
| Core Length | 17 5/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 30 5/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 30 1/2 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353034927 |
| OE Part Number | 13393, 25310-4D970, 8013393 |
| Oil Cooler (in) | 14 9/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 30 1/2 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2012 Kia Sedona | All Trims | 6 Cyl 3.5L |
| 2014 Kia Sedona | All Trims | 6 Cyl 3.5L |
