Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3504 |

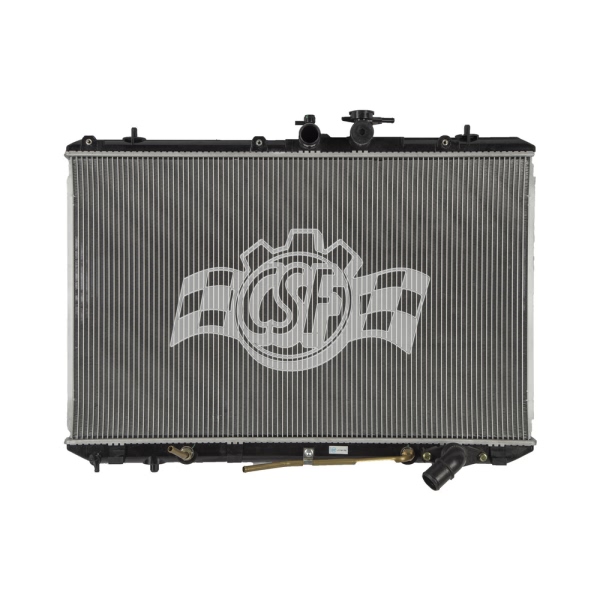

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 7 13/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 25 7/8 |
| Core Length | 18 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 30 5/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353035047 |
| OE Part Number | 13122, 13123, 16041-36050, 16041-36060, 221-3147, 8013123, CU13123, CU13122, 221-3148 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 31 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2011 Toyota Highlander | All Trims | 4 Cyl 2.7L |
