Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3516 |

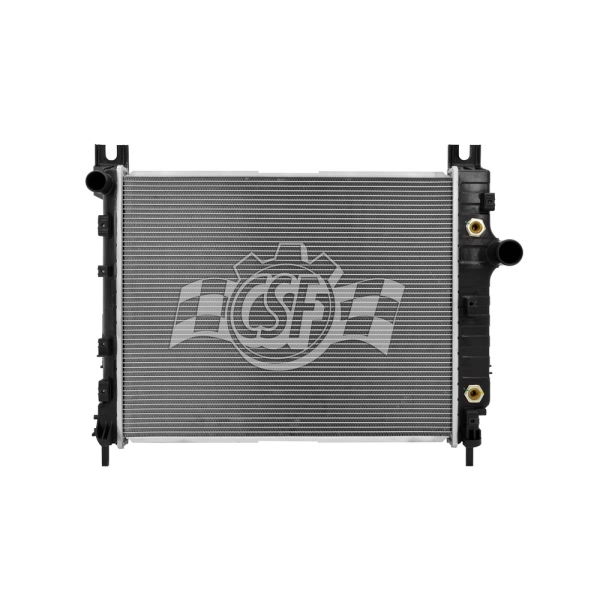

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/4 Right |
| Box Height (in) | 8 13/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 25 11/16 |
| Core Length | 23 1/2 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 18 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 19 13/16 |
| Inlet Width (in) | 2 1/8 |
| No. Of Rows | 2 |
| UPC | 710353035160 |
| OE Part Number | 52028916, 52028917, 52028918, 52028816 AC, 52028818 AC, 52028917 AA, 8012294, CU2294, 52028917 AC, 52028818 AB, 52028816 AB, 52028818 AA |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 19 13/16 |
| Outlet Width | 2 1/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimps to strengthen radiator by 40% O.E. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2002 Dodge Dakota | All Trims | 4 Cyl 2.5L |
| 2000-2003 Dodge Dakota | All Trims | 6 Cyl 3.9L |
| 2000-2003 Dodge Dakota | All Trims | 8 Cyl 5.9L |
| 2000-2004 Dodge Dakota | All Trims | 8 Cyl 4.7L |
| 2004 Dodge Dakota | All Trims | 6 Cyl 3.7L |
| 2000 Dodge Durango | All Trims | 8 Cyl 5.2L |
| 2000-2003 Dodge Durango | All Trims | 8 Cyl 4.7L |
| 2000-2003 Dodge Durango | All Trims | 8 Cyl 5.9L |
