Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3517 |

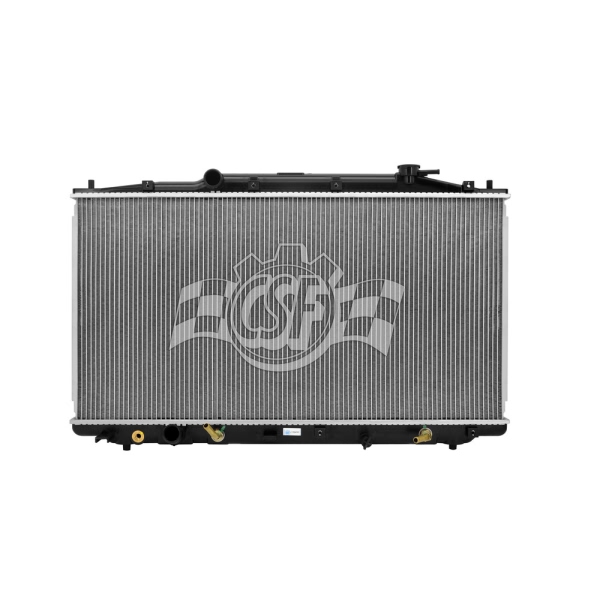

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 22 3/8 |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 30 3/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353035177 |
| OE Part Number | 19010-R70-A53, 19010-R72-A02, 8012989, 19010-R70-A51, 19010-R72-A01, CU2989, 13884, 19010-R70-A52, 19010-RL8-A51 |
| Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 31 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2018 Acura RDX | All Trims | 6 Cyl 3.5L |
| 2010-2014 Acura TSX | All Trims | 6 Cyl 3.5L |
| 2008-2012 Honda Accord | All Trims | 6 Cyl 3.5L |
| 2010-2011 Honda Accord Crosstour | All Trims | 6 Cyl 3.5L |
| 2012-2013 Honda Crosstour | All Trims | 6 Cyl 3.5L |
