Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3525 |

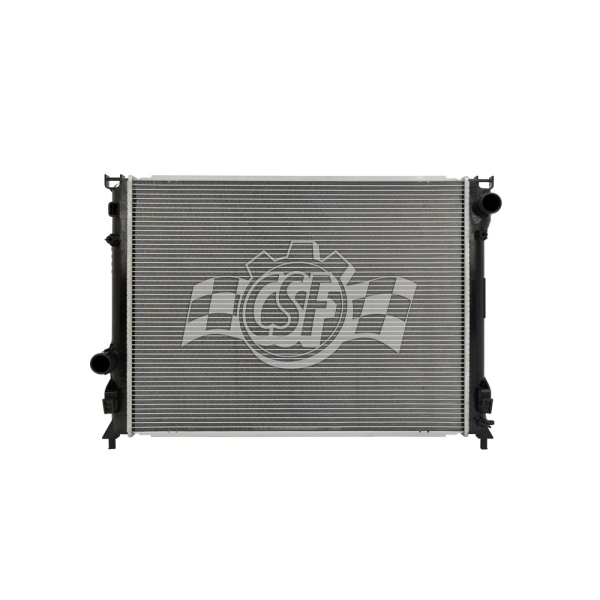

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 6 14/16 |
| Box Length (in) | 30 1/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/8 |
| Core Length | 24 1/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 11/16 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353035252 |
| OE Part Number | 13298, 13157, CU13157, 8013157, 68050126 AB, 68050126 AA |
| Outlet Length(in) | 18 11/16 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2010 Chrysler 300 | All Trims | 6 Cyl 2.7L |
| 2009-2010 Chrysler 300 | All Trims | 6 Cyl 3.5L |
| 2009-2010 Chrysler 300 | All Trims | 8 Cyl 6.1L |
| 2009-2020 Chrysler 300 | All Trims | 8 Cyl 5.7L |
| 2011-2020 Chrysler 300 | All Trims | 6 Cyl 3.6L |
| 2011-2013 Dodge Challenger | All Trims | 6 Cyl 3.6L |
| 2011-2020 Dodge Challenger | All Trims | 8 Cyl 5.7L |
| 2015-2020 Dodge Challenger | All Trims | 6 Cyl 3.6L |
| 2015-2020 Dodge Challenger | All Trims | 8 Cyl 6.4L |
| 2011-2019 Dodge Charger | All Trims | 6 Cyl 3.6L |
