Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3538 |

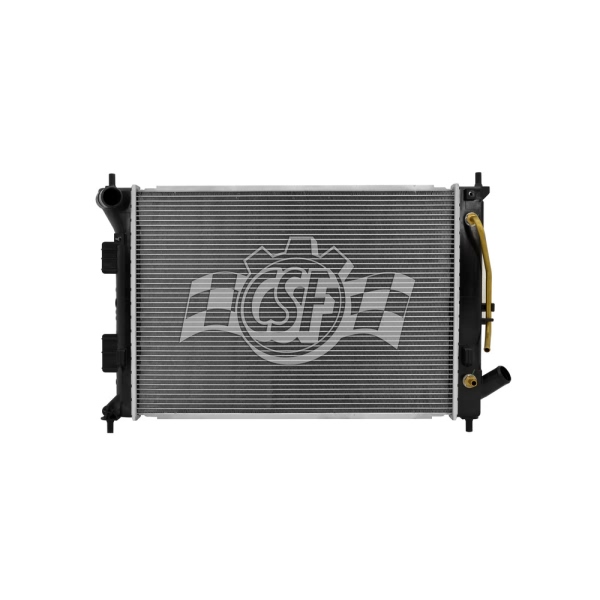

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 29 7/8 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 19 13/16 |
| Core Length | 21 5/8 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 15 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353035382 |
| OE Part Number | 13333, 13385, 25310-3X101, 8013333 |
| Oil Cooler (in) | 11 (high-effeciency Concentric Type) |
| Outlet Length(in) | 15 13/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2013 Hyundai Elantra | All Trims | 4 Cyl 1.8L |
| 2013 Hyundai Elantra Coupe | All Trims | 4 Cyl 1.8L |
| 2013 Hyundai Elantra GT | All Trims | 4 Cyl 1.8L |
| 2014-2015 Hyundai Elantra GT | All Trims | 4 Cyl 2.0L |
| 2014 Kia Forte | All Trims | 4 Cyl 1.8L |
| 2014 Kia Forte | All Trims | 4 Cyl 2.0L |
| 2016 Kia Forte | All Trims | 4 Cyl 1.8L |
| 2016 Kia Forte | All Trims | 4 Cyl 2.0L |
| 2014 Kia Forte Koup | All Trims | 4 Cyl 2.0L |
