Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3540 |

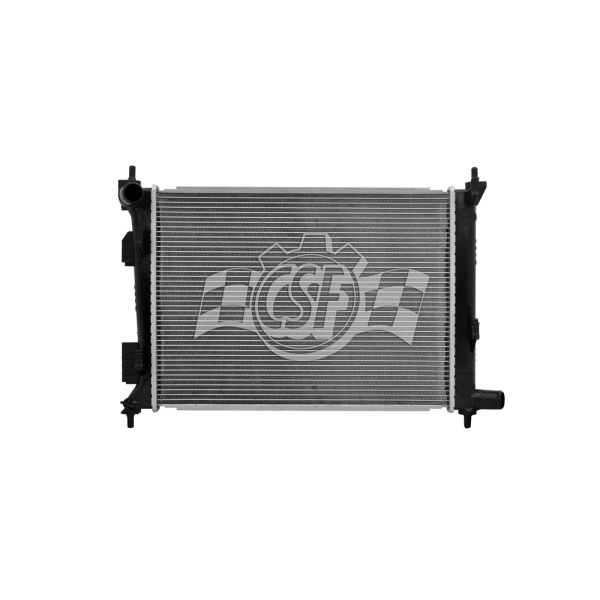

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 27 5/16 |
| Box Weight (lbs) | 6 |
| Box Width (in) | 20 |
| Core Length | 19 11/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 14 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 14 15/16 |
| Inlet Width (in) | 1 3/16 |
| No. Of Rows | 1 |
| UPC | 710353035405 |
| OE Part Number | 13252, 23510-1R000, CU13252 |
| Outlet Length(in) | 14 15/16 |
| Outlet Width | 1 3/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2017 Hyundai Accent | All Trims | 4 Cyl 1.6L |
| 2012-2017 Hyundai Veloster | All Trims | 4 Cyl 1.6L |
| 2012-2017 Kia Rio | All Trims | 4 Cyl 1.6L |
