Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3544 |

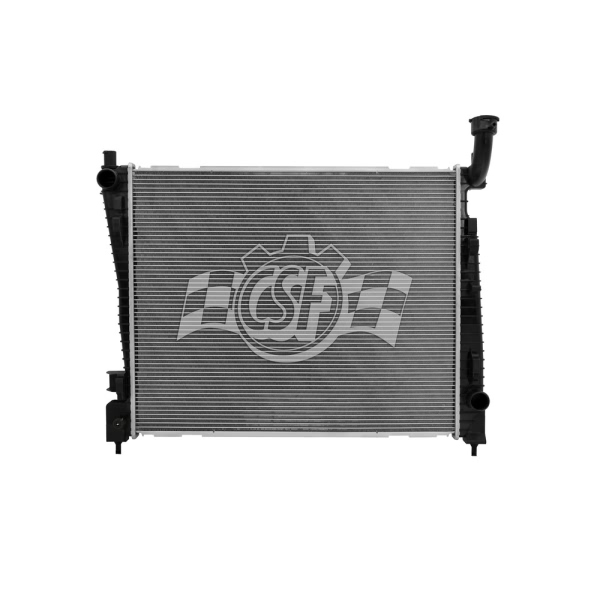

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 9 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 28 1/4 |
| Core Length | 25 1/8 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 20 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4539 |
| Hazardous Material | No |
| Inlet Length (in) | 21 1/4 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353035443 |
| OE Part Number | 13200, 52014529 AB, CU13200, 8013204 |
| Outlet Length(in) | 21 1/4 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Dodge Durango | All Trims | 6 Cyl 3.6L |
| 2011-2014 Dodge Durango | All Trims | 8 Cyl 5.7L |
| 2011-2015 Jeep Grand Cherokee | All Trims | 6 Cyl 3.6L |
| 2011-2020 Jeep Grand Cherokee | All Trims | 8 Cyl 5.7L |
