Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3547 |

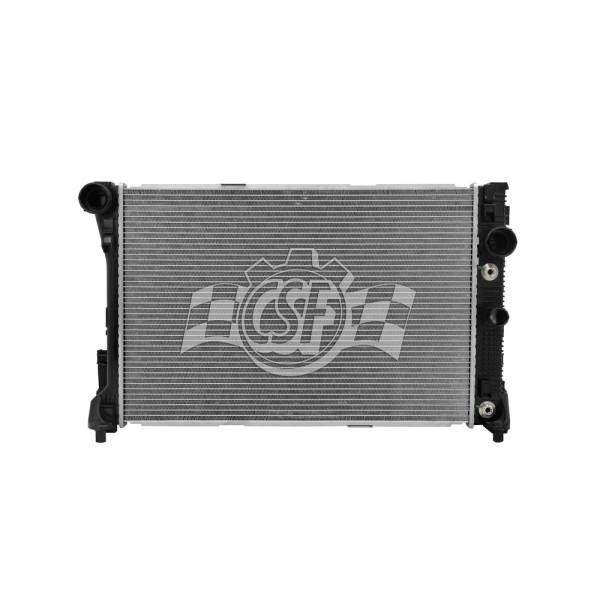

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 13/16 Right |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 20 13/16 |
| Core Length | 25 5/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 16 7/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 9/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353035474 |
| OE Part Number | 13213, 2045002803, 8013213, 2045002203 |
| Oil Cooler (in) | 10 1/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 9/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 13/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2011 Mercedes-Benz C300 | All Trims | 6 Cyl 3.0L |
| 2008-2010 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L |
| 2010-2011 Mercedes-Benz GLK350 | All Trims | 6 Cyl 3.5L |
| 2012-2015 Mercedes-Benz SLK250 | All Trims | 4 Cyl 1.8L |
