Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3549 |

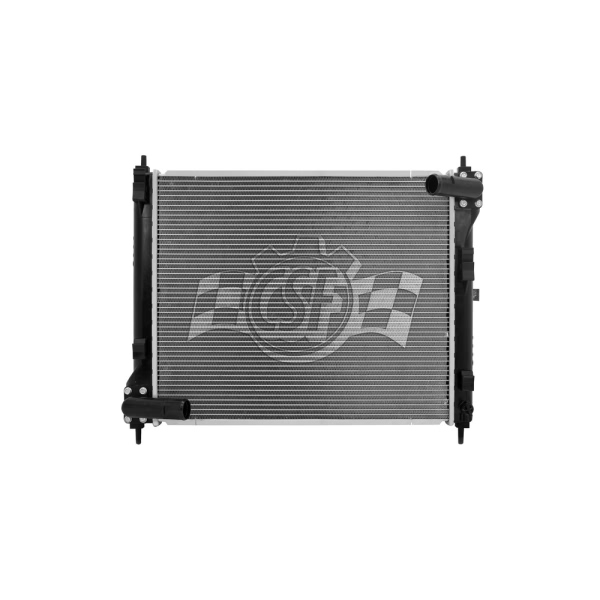

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 7 4/16 |
| Box Length (in) | 25 15/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 3/16 |
| Core Length | 20 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353035498 |
| OE Part Number | 13264, 21410-1KC5A, 8013264, CU13264 |
| Outlet Length(in) | 17 1/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Nissan Juke | All Trims | 4 Cyl 1.6L |
| 2015-2017 Nissan Juke | Nismo | 4 Cyl 1.6L |
| 2015-2017 Nissan Juke | Nismo RS | 4 Cyl 1.6L |
| 2015-2017 Nissan Juke | S | 4 Cyl 1.6L |
| 2015-2017 Nissan Juke | SL | 4 Cyl 1.6L |
| 2015-2017 Nissan Juke | SV | 4 Cyl 1.6L |
| 2017-2019 Nissan Sentra | All Trims | 4 Cyl 1.6L |
