Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3554 |

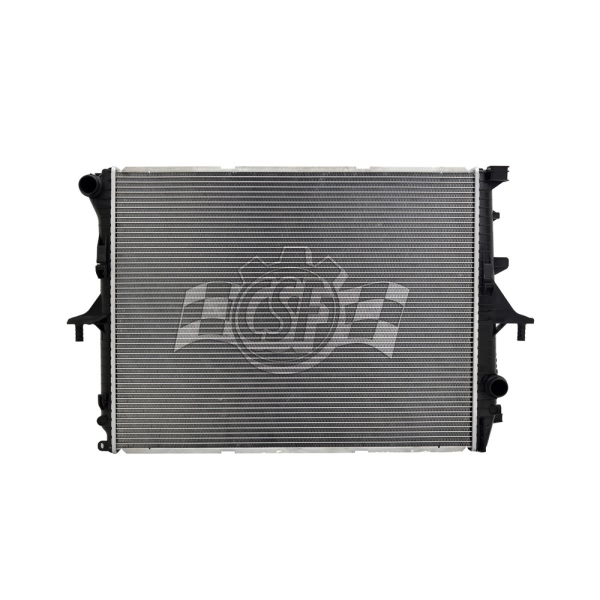

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 38 5/16 |
| Box Weight (lbs) | 19 |
| Box Width (in) | 24 15/16 |
| Core Length | 27 15/16 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 21 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 22 1/8 |
| Inlet Width (in) | 1 15/16 |
| No. Of Rows | 2 |
| UPC | 710353035542 |
| OE Part Number | 955 106 142 01, 13036, 8012756, CU2756, CU13036 |
| Outlet Length(in) | 22 1/8 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2010 Audi Q7 | All Trims | 6 Cyl 3.6L |
| 2007-2010 Audi Q7 | All Trims | 8 Cyl 4.2L |
| 2008-2015 Audi Q7 | All Trims | 6 Cyl 3.0L |
| 2015 Audi Q7 | All Trims | 8 Cyl 4.2L |
| 2003-2006 Porsche Cayenne | All Trims | 8 Cyl 4.5L |
| 2004-2006 Porsche Cayenne | All Trims | 6 Cyl 3.2L |
| 2008-2010 Porsche Cayenne | All Trims | 6 Cyl 3.6L |
| 2008-2010 Porsche Cayenne | All Trims | 8 Cyl 4.8L |
| 2004 Volkswagen Touareg | All Trims | 10 Cyl 4.9L |
| 2004-2006 Volkswagen Touareg | All Trims | 6 Cyl 3.2L |
