Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3562 |

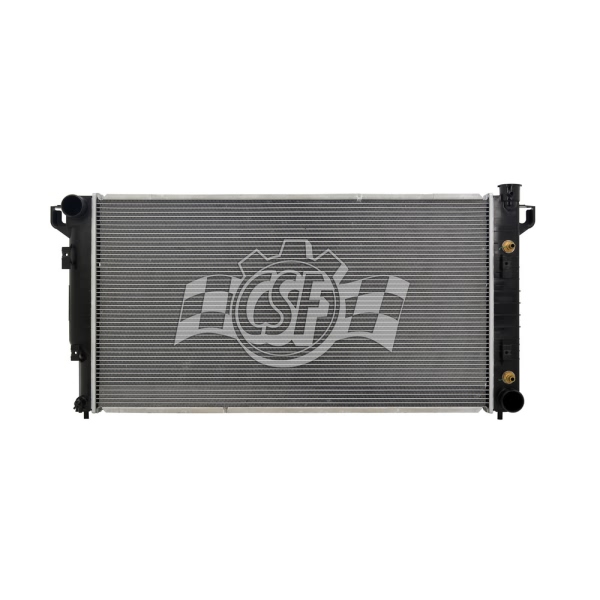

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 2 1/16 Right |
| Box Height (in) | 7 1/16 |
| Box Length (in) | 47 9/16 |
| Box Weight (lbs) | 23 |
| Box Width (in) | 24 3/4 |
| Core Length | 36 |
| Core Material | Aluminum |
| Core Thickness | 2 1/16 |
| Core Width | 19 3/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 19 7/8 |
| Inlet Width (in) | 3 1/16 |
| No. Of Rows | 2 |
| UPC | 710353035627 |
| OE Part Number | 52006478, 52030106, CU1555, 8011554, 8011555, CU1554 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 19 7/8 |
| Outlet Width | 3 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 2 1/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-2002 Dodge Ram 2500 | All Trims | 10 Cyl 8.0L |
| 1994-2002 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L |
