Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3563 |

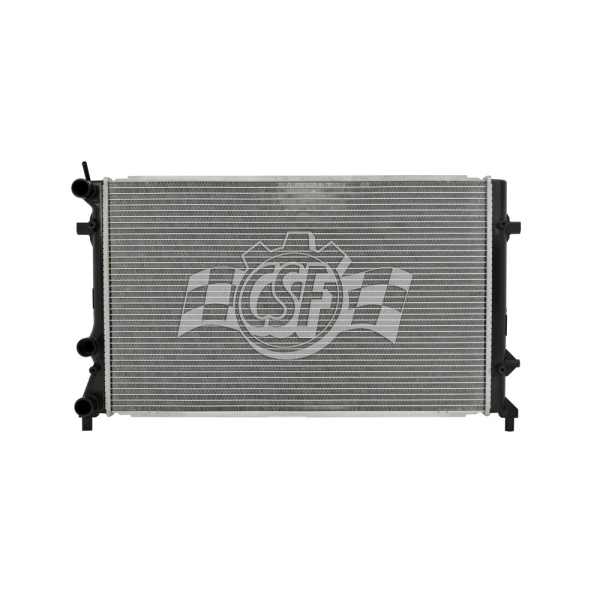

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 4 11/16 |
| Box Length (in) | 31 13/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 9/16 |
| Core Length | 25 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 1/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353035634 |
| OE Part Number | CU13215, 5C0-121-251 E, 5C0-121-251 D, 8013215 |
| Outlet Length(in) | 16 1/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with Higher Performance Brazed Aluminum core to replace Lower Performance mechanical core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2014 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
| 2016 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
| 2011-2018 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
| 2011-2018 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
