Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3570 |

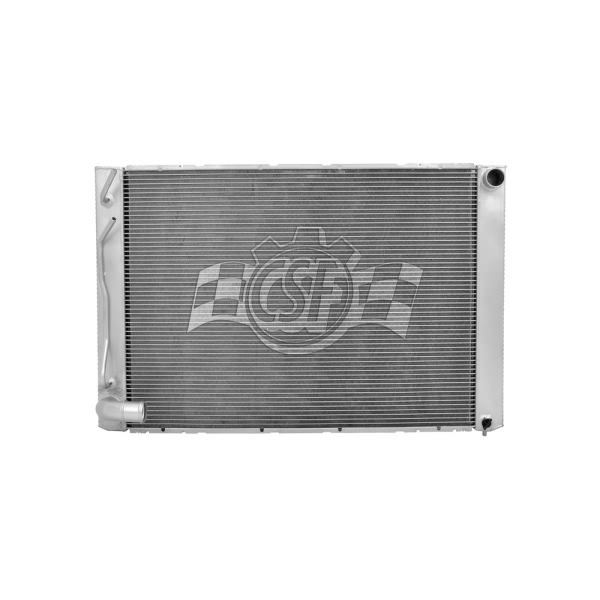

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 6 7/16 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 22 3/16 |
| Core Length | 26 5/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 19 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 19 7/8 |
| Inlet Width (in) | 1 1/4 |
| No. Of Rows | 1 |
| UPC | 710353035702 |
| OE Part Number | 2682, 2681, 16041-0A402, 16041-0A401, 8012682, CU2682, 221-0521, CU2681, 16041-0A390, 16400-0A402, 8012681 |
| Oil Cooler (in) | 13 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 19 7/8 |
| Outlet Width | 1 1/4 |
| Radiator Cap Supplied | No |
| Tank Material | Aluminum |
| Tech Note | O.E.M. style All Aluminum tanks & core model. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Toyota Sienna | All Trims | 6 Cyl 3.3L |
