Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3575 |

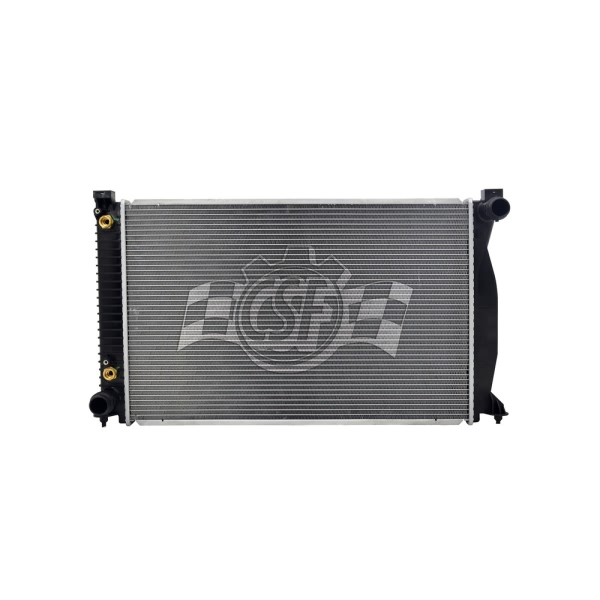

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 7 7/16 |
| Box Length (in) | 34 9/16 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 21 |
| Core Length | 26 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 16 7/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 7/16 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 2 |
| UPC | 710353035757 |
| OE Part Number | 4F0 121 251 AH, 8012912 |
| Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 7/16 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2011 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
| 2007-2011 Audi S6 | All Trims | 10 Cyl 5.2L |
