Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3578 |

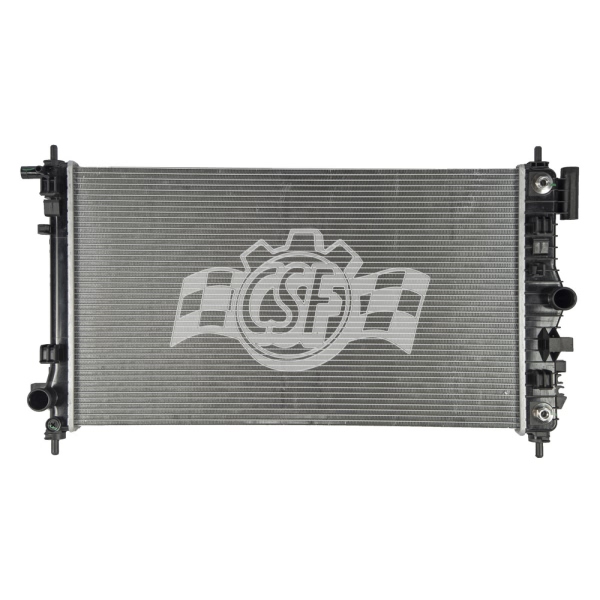

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 34 13/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 21 |
| Core Length | 26 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 15 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 1/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353035788 |
| OE Part Number | 13217, 13241729, 22762531, 13218, 8013217, CU13217 |
| Oil Cooler (in) | 13 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 1/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2013 Buick Regal | All Trims | 4 Cyl 2.0L |
