Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3582 |

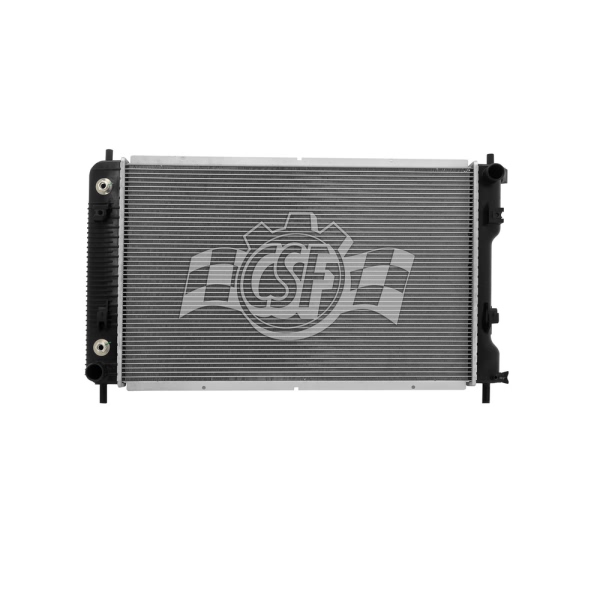

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 32 13/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 3/8 |
| Core Length | 25 15/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 16 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 13/16 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353035825 |
| OE Part Number | 13139, 25952758, 13140, 8013103, CU13139 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 13/16 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2012 Chevrolet Equinox | All Trims | 6 Cyl 3.0L |
| 2010-2017 Chevrolet Equinox | All Trims | 4 Cyl 2.4L |
| 2013-2017 Chevrolet Equinox | All Trims | 6 Cyl 3.6L |
| 2010-2012 GMC Terrain | All Trims | 6 Cyl 3.0L |
| 2010-2017 GMC Terrain | All Trims | 4 Cyl 2.4L |
| 2013-2017 GMC Terrain | All Trims | 6 Cyl 3.6L |
