Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3602 |

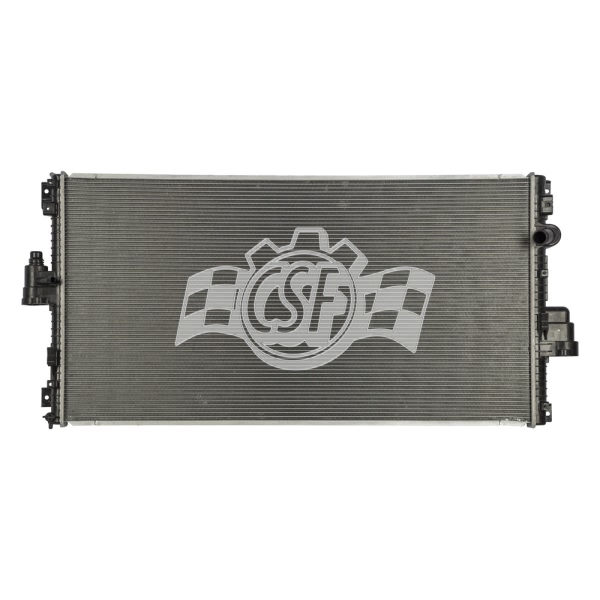

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 Left |
| Box Height (in) | 7 13/16 |
| Box Length (in) | 48 3/4 |
| Box Weight (lbs) | 25 |
| Box Width (in) | 24 3/4 |
| Core Length | 39 3/8 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 20 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 21 3/8 |
| Inlet Width (in) | 2 1/8 |
| No. Of Rows | 2 |
| UPC | 710353036020 |
| OE Part Number | 13339, BC3Z 8005D, 8013339, BC3Z8575B, BC3Z9575C |
| Outlet Length(in) | 21 3/8 |
| Outlet Width | 2 1/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.7L |
| 2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.7L |
