Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3615 |

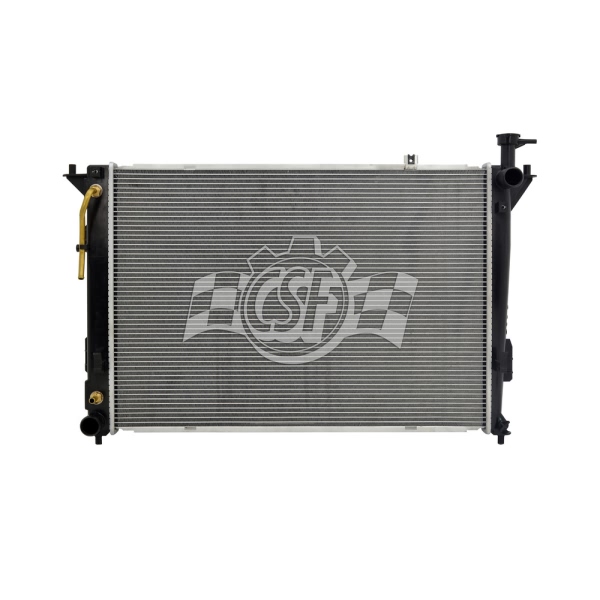

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 35 3/4 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 24 1/8 |
| Core Length | 26 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353036150 |
| OE Part Number | 13407, 13194, 13382, 25310-1U250, 25310-1U100, CU13194, 25310 2W800, 8013194, 25310-2B300, 25310-1U200 |
| Oil Cooler (in) | 14 9/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 19 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2012 Hyundai Santa Fe | All Trims | 4 Cyl 2.4L |
| 2010-2012 Hyundai Santa Fe | All Trims | 6 Cyl 3.5L |
| 2013-2018 Hyundai Santa Fe | All Trims | 6 Cyl 3.3L |
| 2013-2018 Hyundai Santa Fe Sport | All Trims | 4 Cyl 2.4L |
| 2013-2019 Hyundai Santa Fe XL | All Trims | 6 Cyl 3.3L |
| 2011-2013 Kia Sorento | All Trims | 6 Cyl 3.5L |
| 2011-2015 Kia Sorento | All Trims | 4 Cyl 2.4L |
| 2014-2015 Kia Sorento | All Trims | 6 Cyl 3.3L |
