Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3632 |

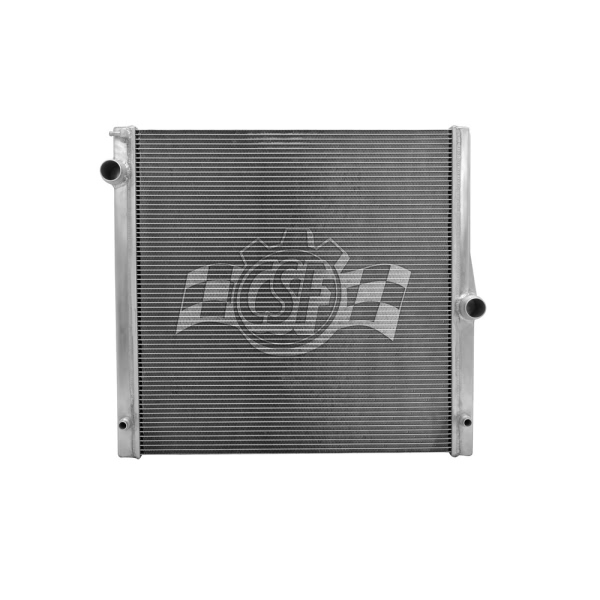

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 4 5/16 |
| Box Length (in) | 28 1/2 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 11/16 |
| Core Length | 22 5/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 23 3/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 23 13/16 |
| Inlet Width (in) | 1 7/16 |
| No. Of Rows | 1 |
| UPC | 710353036327 |
| OE Part Number | 13336, 17117585035, 8013336 |
| Outlet Length(in) | 23 13/16 |
| Outlet Width | 1 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Aluminum |
| Tech Note | O.EM. Style All Aluminum tanks & core;with quick-Connect inlet and outlet pipe;Dual cooler circuit unit with built in separator. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2010 BMW X5 | All Trims | 6 Cyl 3.0L |
| 2007-2010 BMW X5 | All Trims | 8 Cyl 4.8L |
