Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3639 |

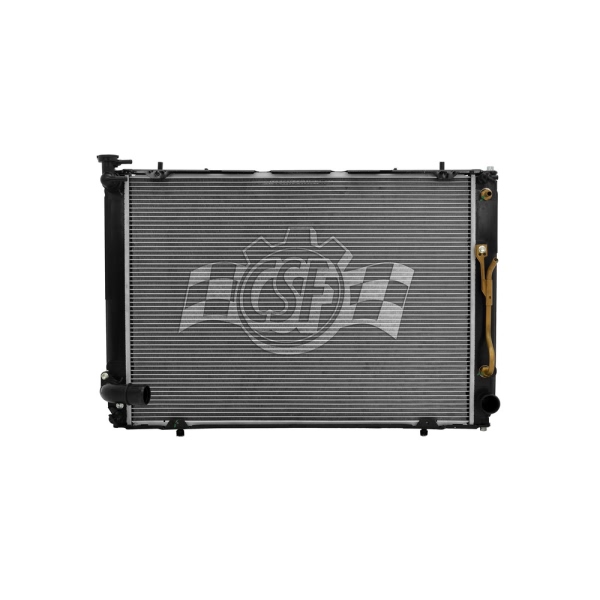

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 8 4/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 24 |
| Box Width (in) | 24 1/2 |
| Core Length | 26 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 19 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 19 5/8 |
| Inlet Width (in) | 1 5/16 |
| No. Of Rows | 1 |
| UPC | 710353036396 |
| OE Part Number | 13128, 16410-0P160, 16410-0P161 |
| Oil Cooler (in) | 13 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 19 5/8 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Radiator & Aluminum Condenser module. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2010 Toyota Sienna | All Trims | 6 Cyl 3.5L |
