Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3644 |

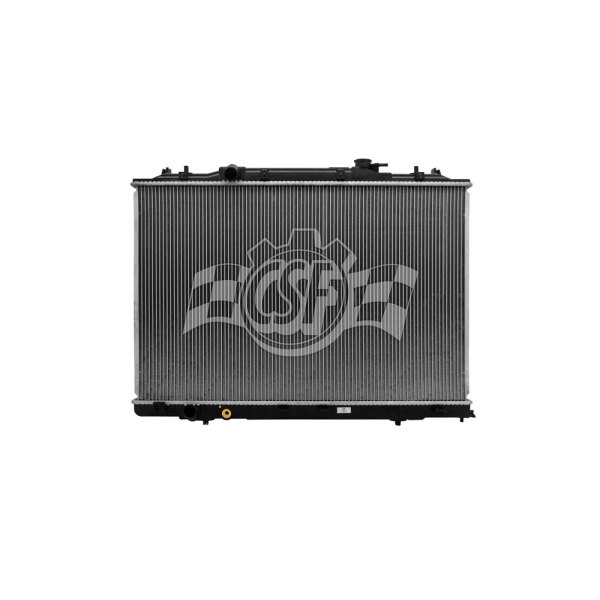

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 33 13/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 26 1/8 |
| Core Length | 19 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 30 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353036440 |
| OE Part Number | 13402, 19010-5J6-A01 |
| Outlet Length(in) | 31 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2014-2020 Acura MDX | All Trims | 6 Cyl 3.5L |
| 2017-2020 Acura MDX | Sport Hybrid | 6 Cyl 3.0L |
| 2019-2020 Honda Passport | All Trims | 6 Cyl 3.5L |
| 2016-2020 Honda Pilot | All Trims | 6 Cyl 3.5L |
| 2017-2020 Honda Ridgeline | All Trims | 6 Cyl 3.5L |
