Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3647 |

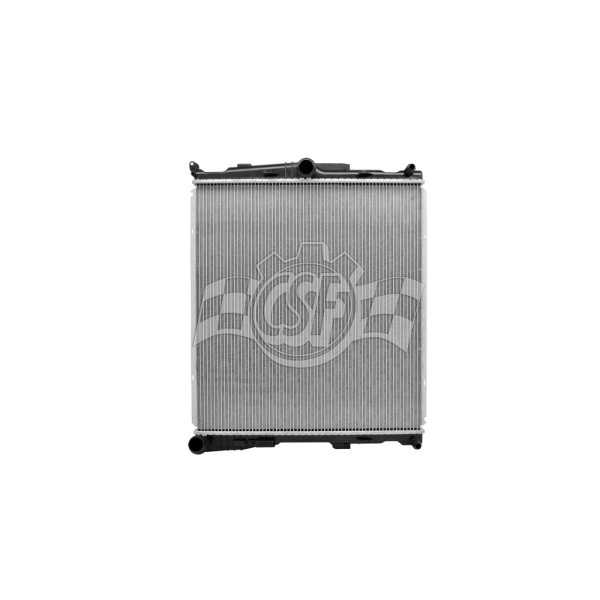

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Centre |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 25 1/8 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 21 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 22 1/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| Outlet Length(in) | 22 1/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Left |
| UPC | 710353036471 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2012 BMW X3 | xDrive28i | 6 Cyl 3.0L |
