Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3661 |

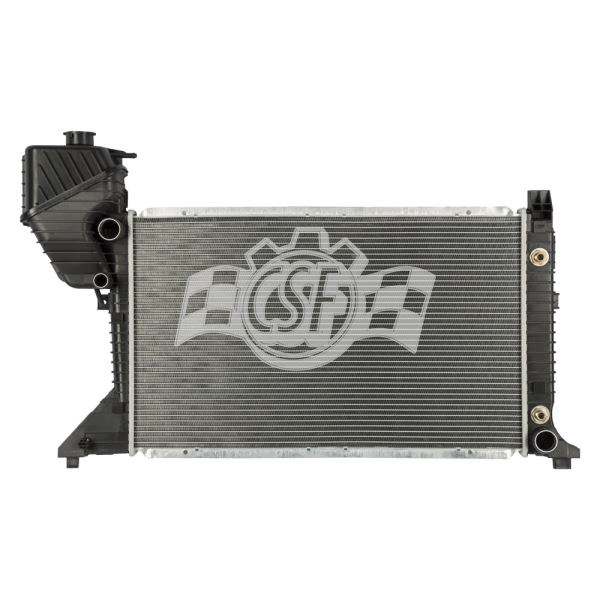

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/8 Right |
| Box Height (in) | 6 |
| Box Length (in) | 39 |
| Box Weight (lbs) | 18 |
| Box Width (in) | 28 |
| Core Length | 26 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 16 1/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4501 |
| Hazardous Material | No |
| Inlet Length (in) | 16 11/16 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353036617 |
| OE Part Number | 5104117AA, CU2796, 2796 |
| Oil Cooler (in) | 10 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 11/16 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2006 Dodge Sprinter 2500 | All Trims | 5 Cyl 2.7L |
| 2003-2006 Dodge Sprinter 3500 | All Trims | 5 Cyl 2.7L |
| 2002-2006 Freightliner Sprinter 2500 | All Trims | 5 Cyl 2.7L |
| 2002-2006 Freightliner Sprinter 3500 | All Trims | 5 Cyl 2.7L |
