Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3670 |

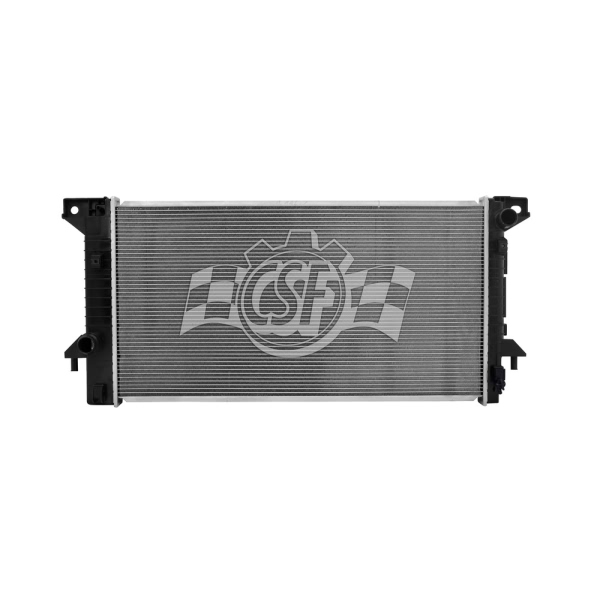

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 6 14/16 |
| Box Length (in) | 41 1/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 20 3/16 |
| Core Length | 31 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/4 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353036709 |
| OE Part Number | 13228, 13229, CU13229, BL3Z 8005C |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 3/4 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & curled Side Rails. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015-2017 Ford Expedition | All Trims | 6 Cyl 3.5L |
| 2011-2014 Ford F-150 | All Trims | 6 Cyl 3.5L |
| 2015-2017 Lincoln Navigator | All Trims | 6 Cyl 3.5L |
