Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3687 |

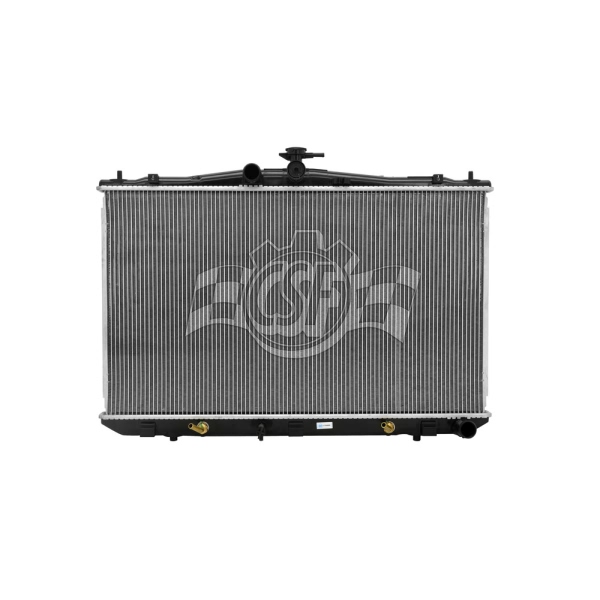

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 6 7/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 24 3/4 |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 15/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353036877 |
| OE Part Number | 13116, 13117, 13118, 13206, 13207, 16041-0P210, 16041-0P260, 16041-31630, CU13117, 16041-0P220, 221-3167, 16041 31660, 221-3168, CU13116, 16041 0P221, 8013207, 16041 31670, 16041 0P211, 13548, 16041-0P270 |
| Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 31 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2015 Lexus RX350 | All Trims | 6 Cyl 3.5L |
| 2010-2015 Lexus RX450h | All Trims | 6 Cyl 3.5L |
| 2011-2013 Toyota Sienna | All Trims | 4 Cyl 2.7L |
| 2011-2016 Toyota Sienna | All Trims | 6 Cyl 3.5L |
