Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3697 |

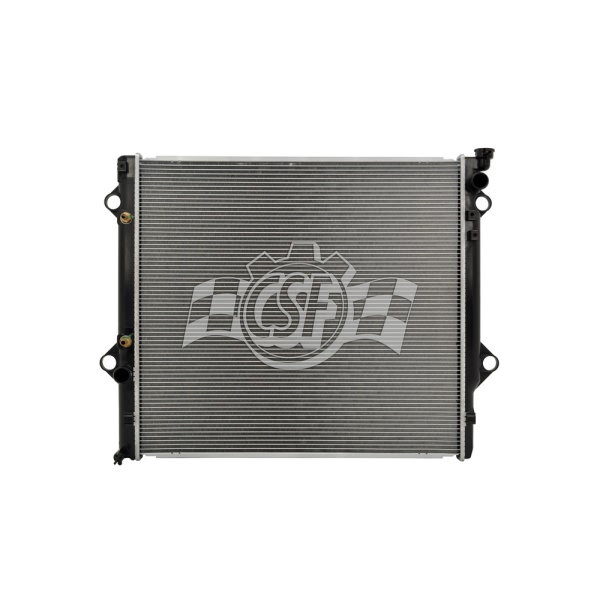

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 33 5/8 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 27 5/16 |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 23 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 24 3/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353036976 |
| OE Part Number | 13144, 2580, CU13144, 8012580, 221-3155, 16400-31351, 16400-31350, 16400 75441, 8013144, 16400 75452, 16400 75442, 16400 31462 |
| Oil Cooler (in) | 9 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 24 3/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2009 Toyota 4Runner | All Trims | 6 Cyl 4.0L |
| 2010 Toyota 4Runner | All Trims | 4 Cyl 2.7L |
| 2007-2014 Toyota FJ Cruiser | All Trims | 6 Cyl 4.0L |
