Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3707 |

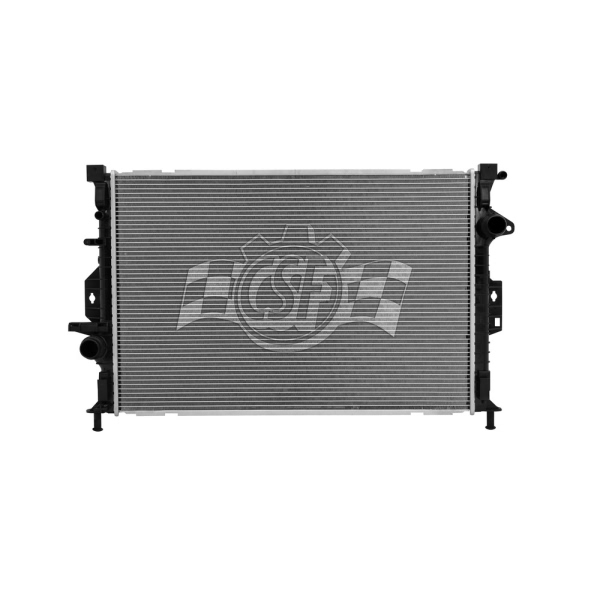

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 34 3/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 3/8 |
| Core Length | 26 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 17 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 1/8 |
| Inlet Width (in) | 1 5/16 |
| No. Of Rows | 1 |
| UPC | 710353037072 |
| OE Part Number | 13315, LR039530, 36002414-5, 8013315, 31368082-9 |
| Outlet Length(in) | 18 1/8 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015 Land Rover Discovery | All Trims | 6 Cyl 3.0L |
| 2008-2012 Land Rover LR2 | All Trims | 6 Cyl 3.2L |
| 2013-2015 Land Rover LR2 | All Trims | 4 Cyl 2.0L |
| 2012-2014 Land Rover Range Rover Evoque | All Trims | 4 Cyl 2.0L |
| 2016 Land Rover Range Rover Evoque | All Trims | 4 Cyl 2.0L |
| 2011-2016 Volvo S60 | All Trims | 6 Cyl 3.0L |
| 2012-2016 Volvo S60 | All Trims | 5 Cyl 2.5L |
| 2016-2018 Volvo S60 | All Trims | 4 Cyl 2.0L |
| 2017-2018 Volvo S60 Cross Country | All Trims | 4 Cyl 2.0L |
| 2007-2014 Volvo S80 | All Trims | 6 Cyl 3.2L |
