Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3710 |

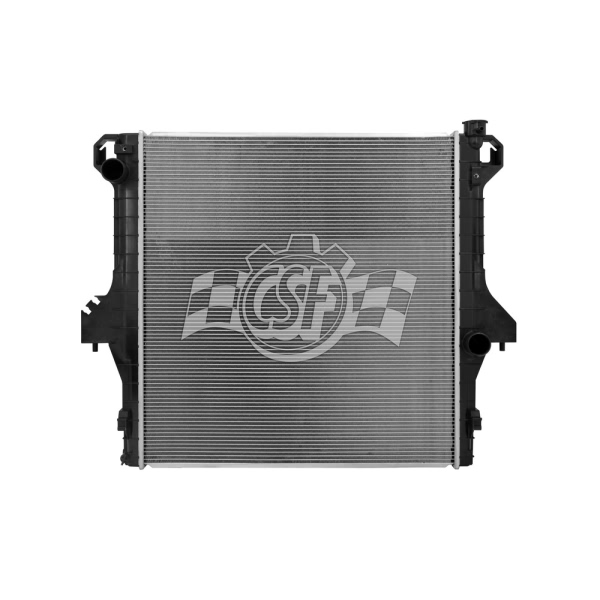

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 2 Right |
| Box Height (in) | 8 1/16 |
| Box Length (in) | 40 1/8 |
| Box Weight (lbs) | 22 |
| Box Width (in) | 33 9/16 |
| Core Length | 26 15/16 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 28 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/4 |
| Inlet Width (in) | 2 7/16 |
| No. Of Rows | 2 |
| UPC | 710353037102 |
| OE Part Number | 52028900 AD, 2711, CU2711, 13094 |
| Outlet Length(in) | 29 1/4 |
| Outlet Width | 2 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2008 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
| 2007-2009 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
| 2004-2007 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
| 2007-2009 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
