Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3713 |

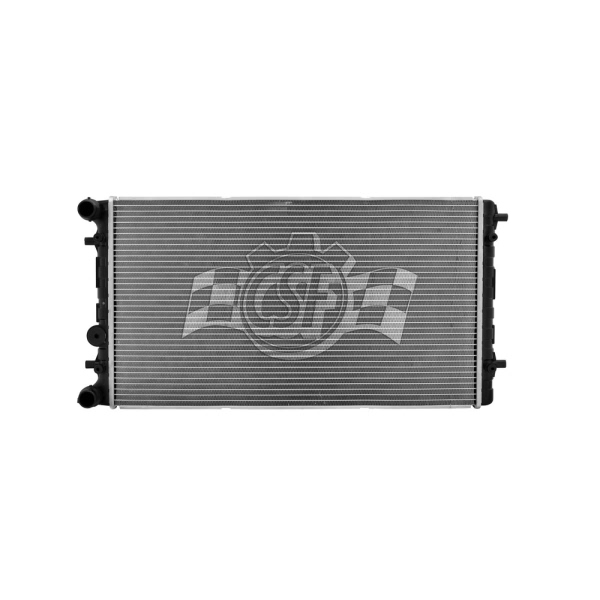

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 17 7/16 |
| Core Length | 25 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 14 1/2 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 14 5/8 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353037133 |
| OE Part Number | 13048, 1C0-121-253 C, 1C0-121-253 D, 1C0-121-253 E, CU13048, 1C0-121-253 A |
| Outlet Length(in) | 14 5/8 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core; with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2005 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
| 1998-2006 Volkswagen Beetle | All Trims | 4 Cyl 1.9L |
| 1999-2005 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
| 2006-2010 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
