Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3718 |

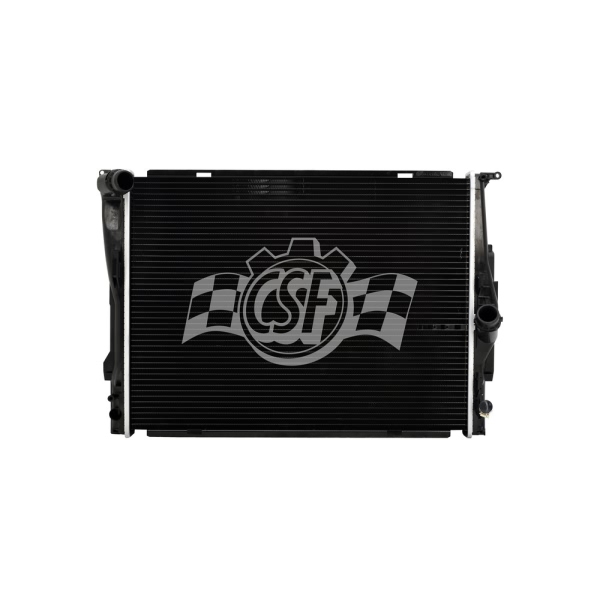

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 29 11/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 17 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 3/8 |
| Inlet Width (in) | 1 3/4 |
| No. Of Rows | 1 |
| UPC | 710353037188 |
| OE Part Number | 13392, 17 11 7 562 079, 17 11 7 559 273, 2882, CU2882, 2824 |
| Outlet Length(in) | 18 3/8 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe;Sensor on core not supplied, original sensor must be removed & used;Supplied with Cooling Circuit "Control Sleeve". |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2013 BMW 128i | All Trims | 6 Cyl 3.0L |
| 2006-2011 BMW 323i | All Trims | 6 Cyl 2.5L |
| 2006 BMW 325Ci | All Trims | 6 Cyl 2.5L |
| 2006 BMW 325i | All Trims | 6 Cyl 3.0L |
| 2006-2011 BMW 325i | All Trims | 6 Cyl 2.5L |
| 2006 BMW 325xi | All Trims | 6 Cyl 3.0L |
| 2007-2013 BMW 328i | All Trims | 6 Cyl 3.0L |
| 2012-2013 BMW 328i | All Trims | 4 Cyl 2.0L |
| 2009-2013 BMW 328i xDrive | All Trims | 6 Cyl 3.0L |
| 2007-2008 BMW 328xi | All Trims | 6 Cyl 3.0L |
