Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3741 |

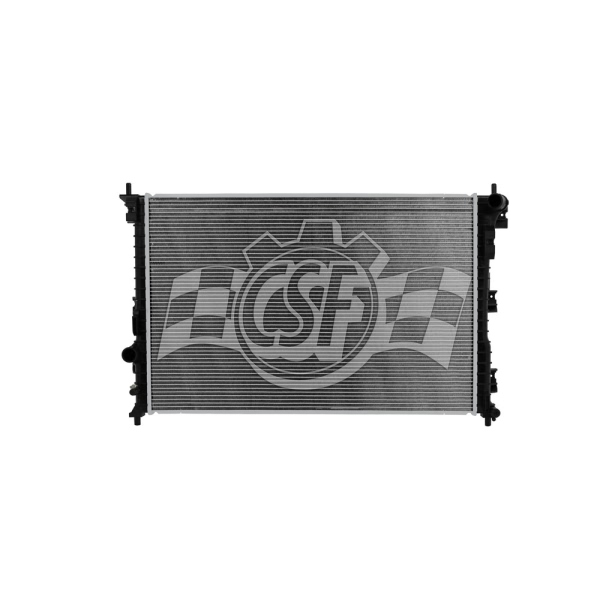

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 6 7/16 |
| Box Length (in) | 35 15/16 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 24 1/8 |
| Core Length | 28 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 19 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 19 1/2 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| UPC | 710353037416 |
| OE Part Number | 13362, DB5Z 8005 B, DB5Z 8005BA, DB5Z 8005 A, EB5Z 8005C, DB5Z 8005CA |
| Outlet Length(in) | 19 1/2 |
| Outlet Width | 1 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2015 Ford Explorer | All Trims | 4 Cyl 2.0L |
| 2013-2014 Ford Explorer | All Trims | 6 Cyl 3.5L |
| 2015 Ford Explorer | Sport | 6 Cyl 3.5L |
| 2016-2019 Ford Explorer | All Trims | 6 Cyl 3.5L |
| 2014-2019 Ford Police Interceptor Utility | All Trims | 6 Cyl 3.5L |
