Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3745 |

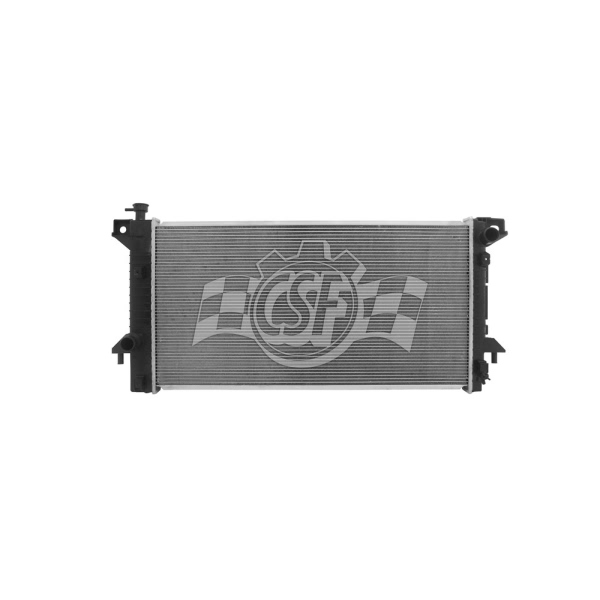

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 7 7/16 |
| Box Length (in) | 41 11/16 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 21 3/4 |
| Core Length | 31 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/4 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353037454 |
| OE Part Number | 13227, BL3Z 8005D, CU13099, 13098, 13099, 8013227, CU13227 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 3/4 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2013 Ford F-150 | SVT Raptor | 8 Cyl 6.2L |
| 2014 Ford F-150 | All Trims | 8 Cyl 6.2L |
