Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3760 |

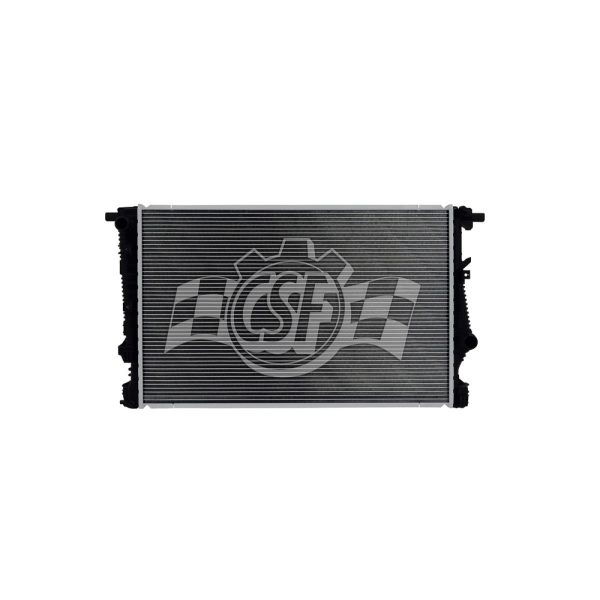

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 6 7/8 |
| Box Length (in) | 34 3/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 19 13/16 |
| Core Length | 26 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353037607 |
| OE Part Number | 13401, 68229290AA, 68229290AB |
| Outlet Length(in) | 17 1/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
| Top Hose Fitting (in) | 1 3/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2014-2018 Jeep Cherokee | All Trims | 4 Cyl 2.4L |
| 2014-2018 Jeep Cherokee | All Trims | 6 Cyl 3.2L |
