Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3761 |

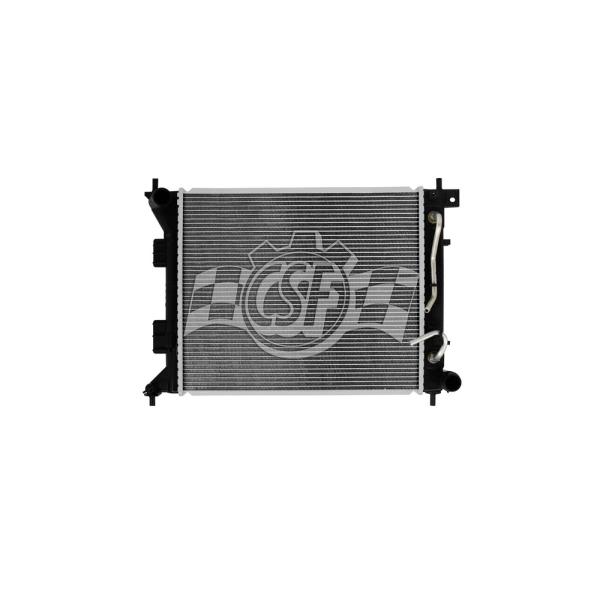

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 25 15/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 20 3/16 |
| Core Length | 18 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 15 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353037614 |
| OE Part Number | 25310 A7100, 25310 A2000 |
| Oil Cooler (in) | 10 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 15 13/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2014-2016 Kia Forte Koup | All Trims | 4 Cyl 1.6L |
| 2014-2018 Kia Forte5 | All Trims | 4 Cyl 1.6L |
| 2017-2019 Kia Soul | All Trims | 4 Cyl 1.6L |
