Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3775 |

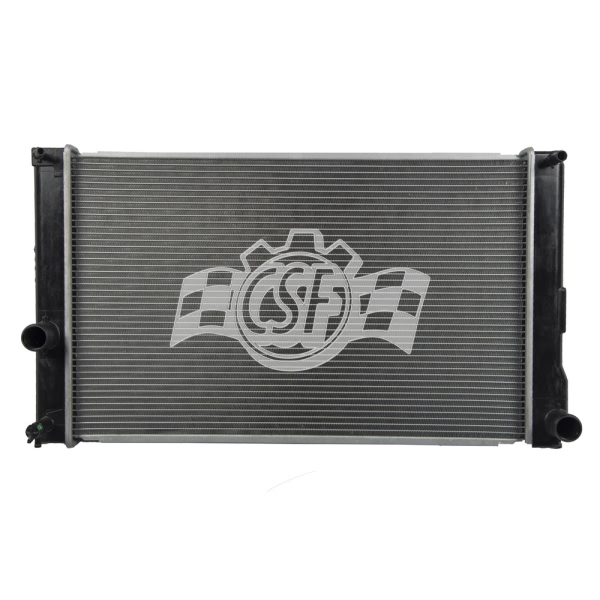

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 6 |
| Box Width (in) | 18 1/16 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 14 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 1/2 |
| Inlet Width (in) | 1 5/16 |
| No. Of Rows | 1 |
| UPC | 710353037751 |
| OE Part Number | 13119, 13259, 16400-37230, 221-3143, CU13119, 16400 37240, 8013119, 16400 37260 |
| Outlet Length(in) | 15 1/2 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2015 Lexus CT200h | All Trims | 4 Cyl 1.8L |
| 2010-2015 Toyota Prius | All Trims | 4 Cyl 1.8L |
| 2012-2015 Toyota Prius Plug-In | All Trims | 4 Cyl 1.8L |
| 2012-2016 Toyota Prius V | All Trims | 4 Cyl 1.8L |
