Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3794 |

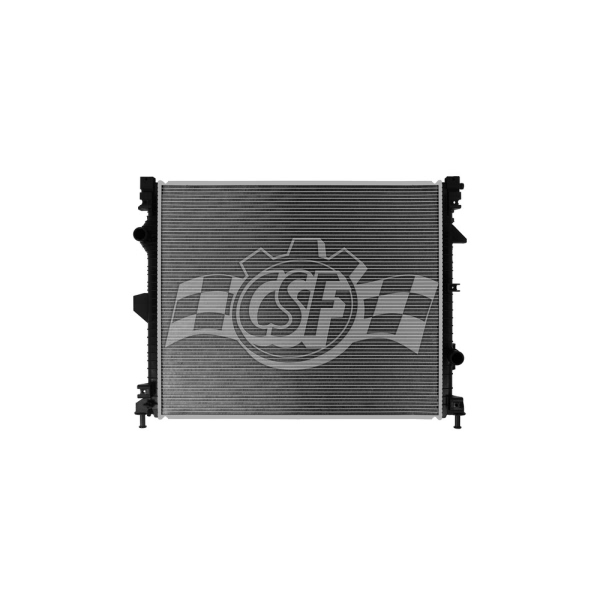

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 5 7/8 |
| Box Length (in) | 35 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 27 11/16 |
| Core Length | 27 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 23 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 23 9/16 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| UPC | 710353037942 |
| OE Part Number | 13554, 7-3554, 8013554, F2GZ 8005 A |
| Outlet Length(in) | 23 9/16 |
| Outlet Width | 1 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Lincoln MKX | All Trims | 6 Cyl 3.7L |
