Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3796 |

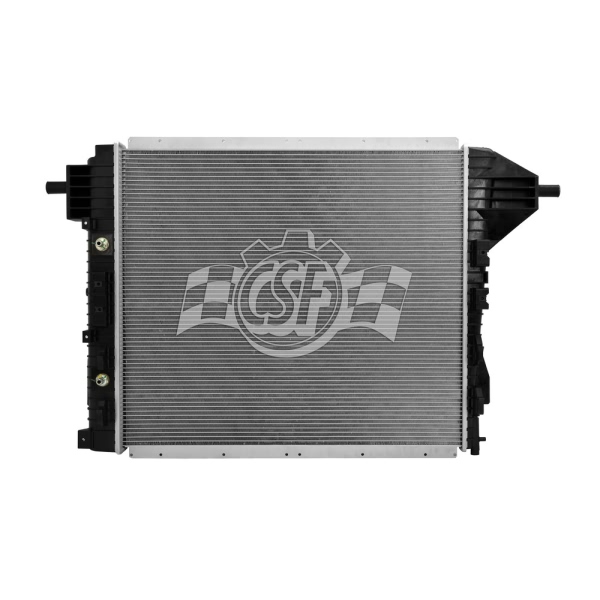

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 7/8 Right |
| Box Height (in) | 11 3/16 |
| Box Length (in) | 47 9/16 |
| Box Weight (lbs) | 31 |
| Box Width (in) | 32 |
| Core Length | 30 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 26 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 27 3/8 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353037966 |
| OE Part Number | 13145, 13231, BC3Z 8005 H, 8013145, CU13145, BC3Z 8005A, 13232, CU13231 |
| Outlet Length(in) | 27 3/8 |
| Outlet Width | 2 11/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 7/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2010 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
| 2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
| 2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
| 2008-2010 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
| 2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
| 2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
