Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3801 |

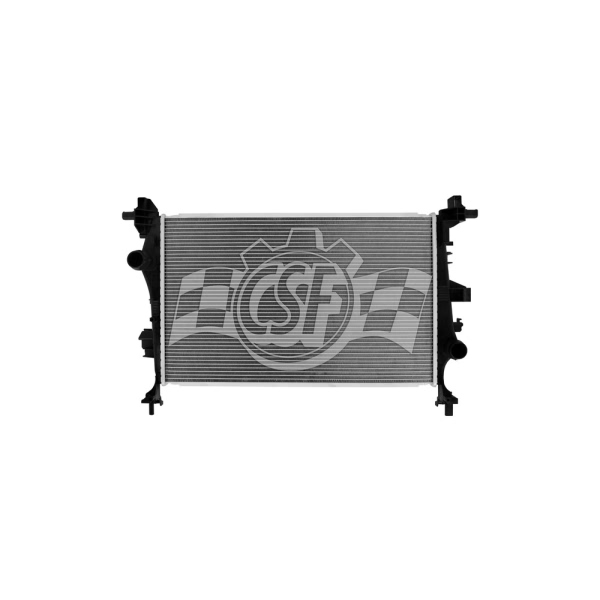

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 7 1/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 22 3/16 |
| Core Length | 24 7/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 15 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 1/2 |
| Inlet Width (in) | 1 1/16 |
| No. Of Rows | 1 |
| Outlet Length(in) | 15 1/2 |
| Outlet Width | 1 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Left |
| UPC | 710353038017 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Fiat 500X | All Trims | 4 Cyl 1.4L |
| 2015-2018 Jeep Renegade | All Trims | 4 Cyl 1.4L |
