Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3839 |

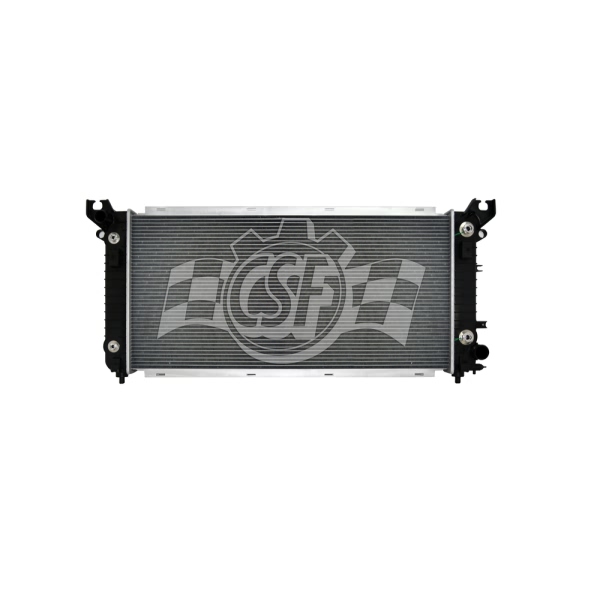

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 9/16 Right |
| Box Height (in) | 7 1/16 |
| Box Length (in) | 44 5/8 |
| Box Weight (lbs) | 21 |
| Box Width (in) | 22 9/16 |
| Core Length | 34 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/16 |
| Inlet Width (in) | 2 7/16 |
| No. Of Rows | 1 |
| UPC | 710353038390 |
| OE Part Number | GM3010582, 84164905, 23378653 |
| Oil Cooler (in) | 11 1/2 Left & Right (high-effeciency Plate Type) |
| Outlet Length(in) | 17 3/16 |
| Outlet Width | 2 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2018-2020 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2015 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2018-2019 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2015 GMC Yukon | All Trims | 8 Cyl 5.3L |
| 2015 GMC Yukon | All Trims | 8 Cyl 6.2L |
| 2017-2019 GMC Yukon | All Trims | 8 Cyl 5.3L |
| 2017-2019 GMC Yukon | All Trims | 8 Cyl 6.2L |
| 2015 GMC Yukon XL | All Trims | 8 Cyl 5.3L |
| 2015 GMC Yukon XL | All Trims | 8 Cyl 6.2L |
