Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3841 |

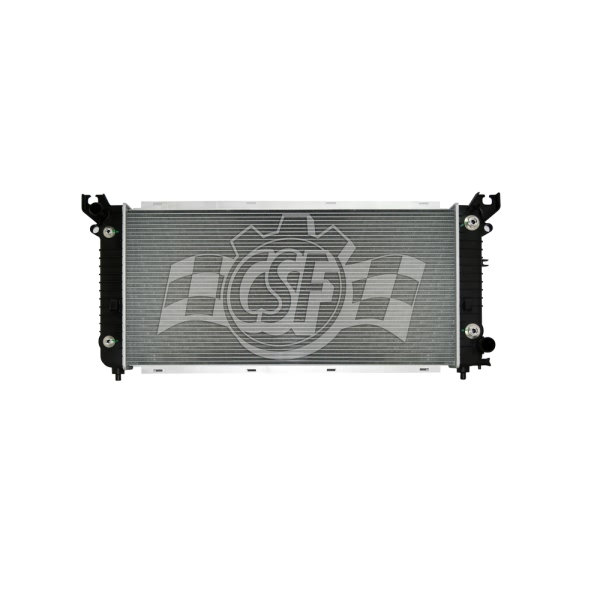

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 9/16 Right |
| Box Height (in) | 7 1/16 |
| Box Length (in) | 44 5/8 |
| Box Weight (lbs) | 20 |
| Box Width (in) | 22 9/16 |
| Core Length | 34 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 16 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/16 |
| Inlet Width (in) | 2 7/16 |
| No. Of Rows | 1 |
| UPC | 710353038413 |
| OE Part Number | 23404561, 84164908, GM3010610 |
| Oil Cooler (in) | 11 1/2 Left & Right (high-effeciency Plate Type) |
| Outlet Length(in) | 17 3/16 |
| Outlet Width | 2 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
| 2016-2018 GMC Sierra 1500 | All Trims | 8 Cyl 5.3L |
