Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3845 |

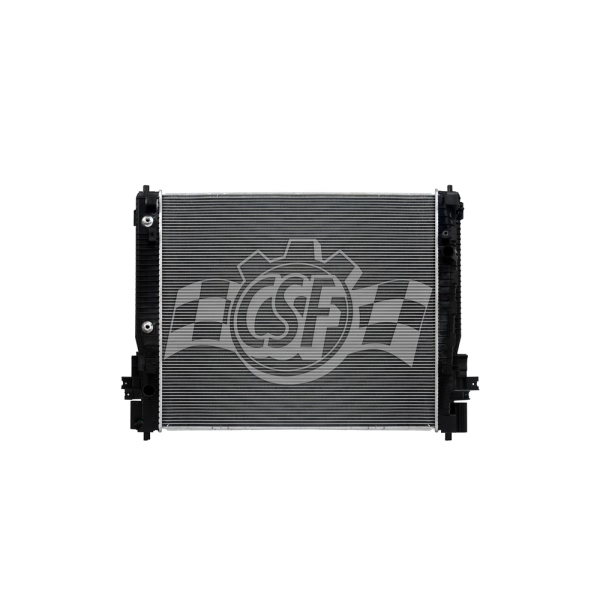

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 7 1/4 |
| Box Length (in) | 40 11/16 |
| Box Weight (lbs) | 19 |
| Box Width (in) | 31 5/8 |
| Core Length | 30 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 25 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 26 7/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353038451 |
| OE Part Number | 84274378, 84274379, GM3010613, 84569929, 84569928 |
| Oil Cooler (in) | 11 13/16 Left & Right (high-effeciency Plate Type) |
| Outlet Length(in) | 26 7/16 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2018-2020 Buick Enclave | All Trims | 6 Cyl 3.6L |
| 2018-2020 Chevrolet Traverse | All Trims | 6 Cyl 3.6L |
