Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3847 |

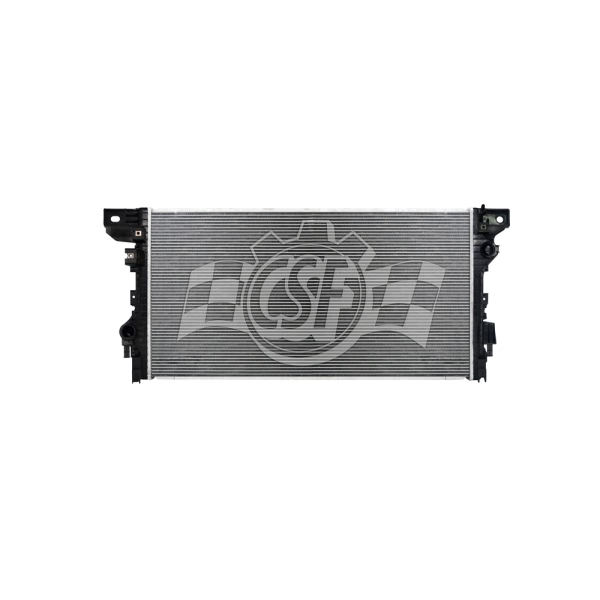

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 8 |
| Box Length (in) | 45 2/8 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 21 6/16 |
| Core Length | 34 5/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 17 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 3/8 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| UPC | 710353038475 |
| OE Part Number | F03010349, HL3Z 8005 B |
| Outlet Length(in) | 18 3/8 |
| Outlet Width | 1 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect outlet pipe. w/ Pin Mount on Both Tanks. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2018-2020 Ford Expedition | All Trims | 6 Cyl 3.5L |
| 2017-2019 Ford F-150 | All Trims | 6 Cyl 3.5L |
| 2018-2019 Ford F-150 | All Trims | 6 Cyl 3.0L |
| 2018-2019 Ford F-150 | All Trims | 6 Cyl 3.3L |
| 2018-2020 Lincoln Navigator | All Trims | 6 Cyl 3.5L |
