Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3865 |

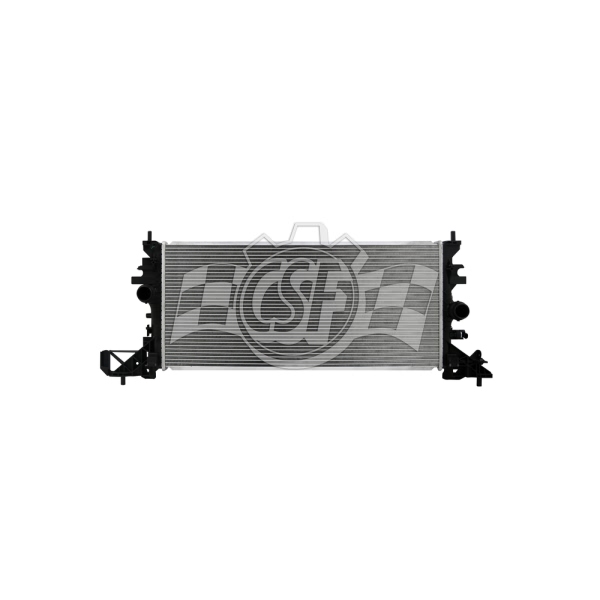

| Part Description | Multi Fit Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 39 11/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 17 1/4 |
| Core Length | 26 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 11 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 12 1/4 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| UPC | 710353038659 |
| OE Part Number | 13453907, 39116554, 13443551, GM3010592, 39116555, GM3010608, GM3010605, 13453906 |
| Outlet Length(in) | 12 1/4 |
| Outlet Width | 1 1/2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2019 Chevrolet Cruze | All Trims | 4 Cyl 1.4L |
| 2017-2019 Chevrolet Cruze | All Trims | 4 Cyl 1.6L |
