Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2800 |

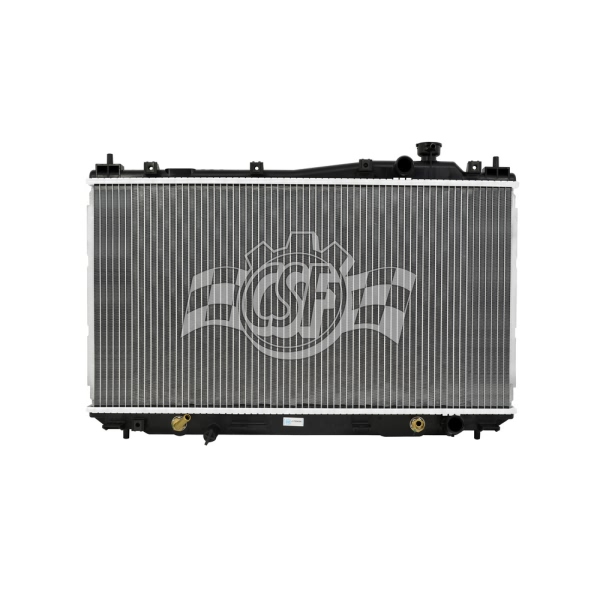

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/8 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 28 7/8 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 13/16 |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 7/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4513 |
| Hazardous Material | No |
| Inlet Length (in) | 26 7/16 |
| Inlet Width (in) | 1 1/16 |
| No. Of Rows | 1 |
| UPC | 710353028001 |
| OE Part Number | 19010-PMM-A52, 221-3222, CU2354, 8012354, 19010-PMS-J51, 2355, 2573, 221-3220, 19010-PMM-A51, 19010-PMM-A02, 2354, 19010-PMM-A01 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 26 7/16 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2005 Honda Civic | All Trims | 4 Cyl 1.7L |
