Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2966 |

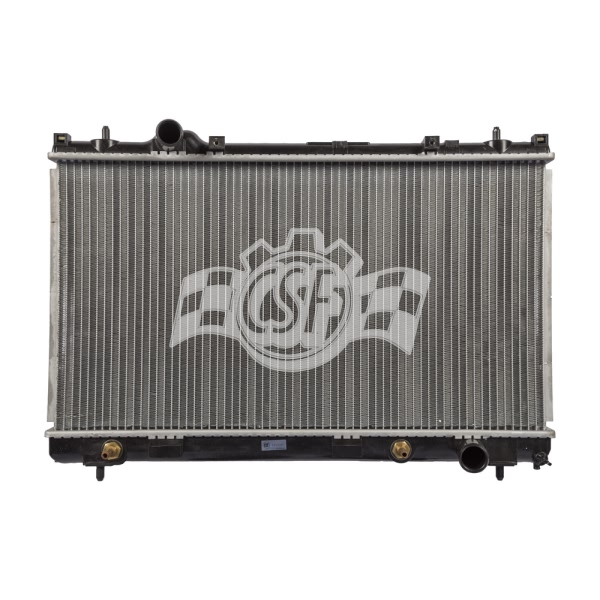

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 6 |
| Box Length (in) | 29 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 1/8 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 25 5/8 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353029664 |
| OE Part Number | 5014580, 5014581, CU2363, 2363, 8012363, 5014581 AA |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 25 5/8 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. Style Advanced Plastic Tanks & Aluminum Core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2002 Chrysler Neon | All Trims | 4 Cyl 2.0L |
| 2000-2005 Dodge Neon | All Trims | 4 Cyl 2.0L |
| 2003-2005 Dodge SX 2.0 | All Trims | 4 Cyl 2.0L |
| 2000-2001 Plymouth Neon | All Trims | 4 Cyl 2.0L |
