Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3261 |

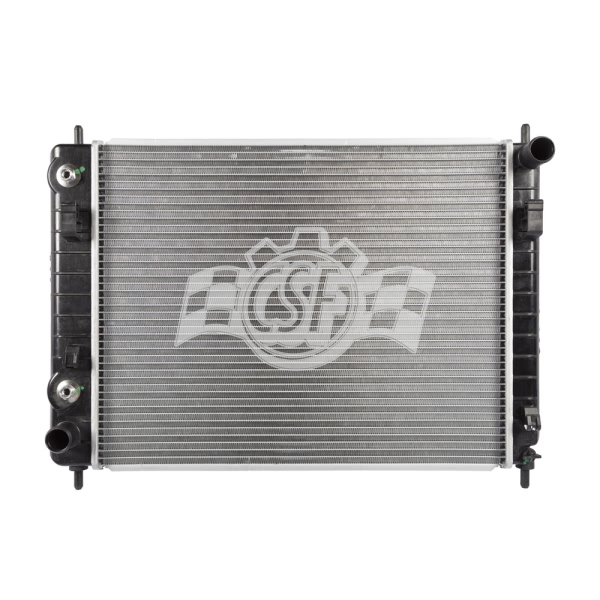

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 28 11/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 21 3/4 |
| Core Length | 21 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 17 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353032619 |
| OE Part Number | 15940326, 22727322, CU2850, 8012850, 2850 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 1/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2011 Chevrolet HHR | All Trims | 4 Cyl 2.2L |
| 2006-2011 Chevrolet HHR | All Trims | 4 Cyl 2.4L |
| 2008-2010 Chevrolet HHR | All Trims | 4 Cyl 2.0L |
